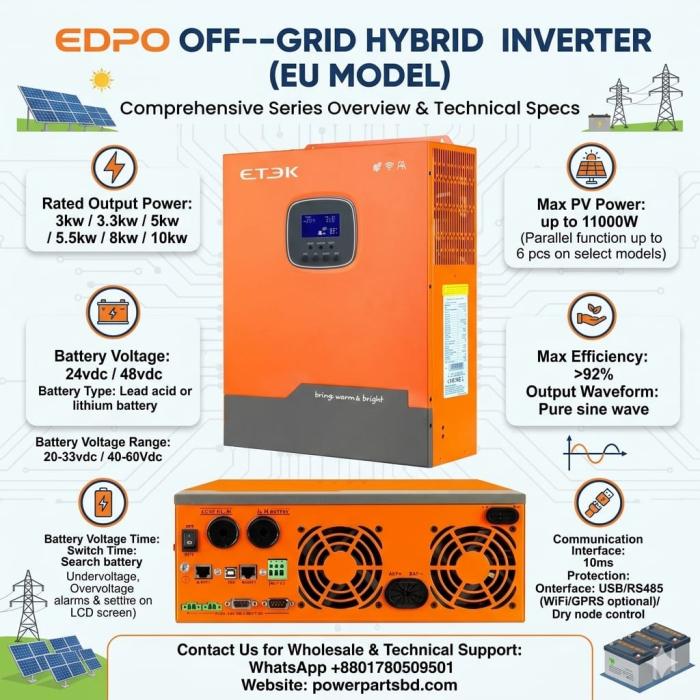

Model

EDPO-L

-3k

EDPO-L

-3.3k

EDPO-L

-5k

EDPO-LP

-5k

EDPO-H

-3.3k

EDPO-H

-3k

EDPO-H

-5k

EDPO-HP

-5.5k

EDPO-HP

-8k

EDPO-HP

-10k

Ratedinputvoltage

220/230Vac

Inputvoltagerange

(170Vac~280Vac)±2%/(90Vac-280Vac)±2%

FrequencyRange

47±0.3Hz~55±0.3Hz(50Hz)/57±0.3Hz~65±0.3Hz(60Hz)

Switchtime

10ms

Ratedoutputpower

3kw

3.3kw

5kw

5kw

3.3kw

3kw

5kw

5.5kw

8kw

10kw

Ratedoutputvoltage

230Vac

Outputfrequency range

50Hz±0.3Hz/60Hz±0.3Hz

Outputvoltage waveform

Puresinewave

MaximumEfficiency

>92%

Batteryvoltage

24vdc

48vdc

48vdc

48vdc

48vdc

48vdc

48vdc

48vdc

48vdc

48vdc

Batterytype

Leadacidorlithiumbattery

PVoperatingvoltage range

30-100vdc

60-145vdc

60-145vdc

60-145vdc

120-500

vdc

120-500

vdc

120-500

vdc

120-500

vdc

120-500

vdc

120-500

vdc

Batteryvoltagerange

20-33vdc

40-60Vdc

40-60Vdc

40-60Vdc

20-33vdc

40-60Vdc

40-60Vdc

40-60Vdc

40-60Vdc

40-60Vdc

Maximumoutput power

1400w

3400w

4200w

4200w

4200w

4200w

5000w

5500w

11000w

11000w

PVchargingcurrent range(canbeset) Chargingshortcircuit

0-60A

0-60A

0-80A

0-80A

0-80A

0-80A

0-80A

0-80A

0-200A

0-200A

Parallel

no

no

no

yes, max6pcs

no

no

no

yes, max6pcs

no

no

Protection

Undervoltagealarm/shutdownvoltage/overvoltagealarm/overvoltagerecovery...settableonLCDscreen

Communication interface

USB/RS485(WiFi/GPRSisoptional)/Drynodecontrol

Size(L×W×D)mm

378×280

×103

378×280

×103

498×410

×201

498×410

×201

378×280

×103

426×322

×126

426×322

×126

426×322

×126

717×507

×210

717×507

×210

Weight(kg)

8

12

12

12

8

12

12

12

26

26
