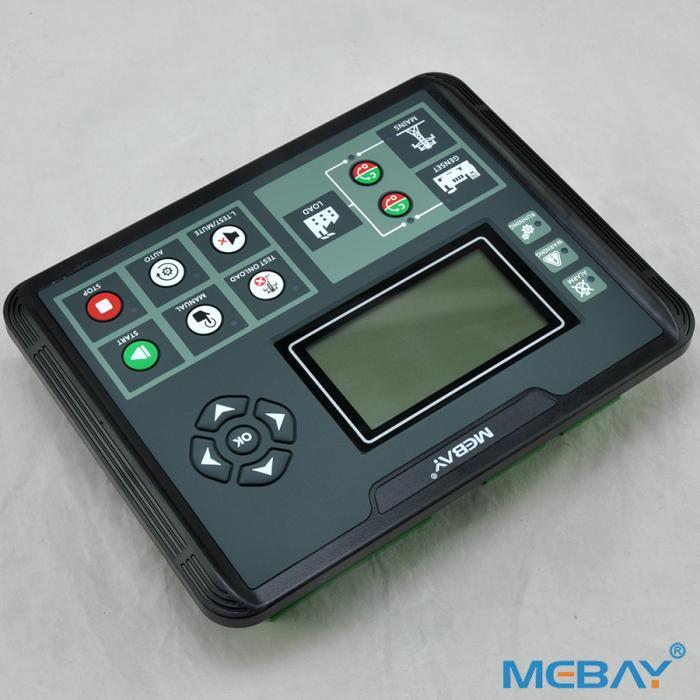

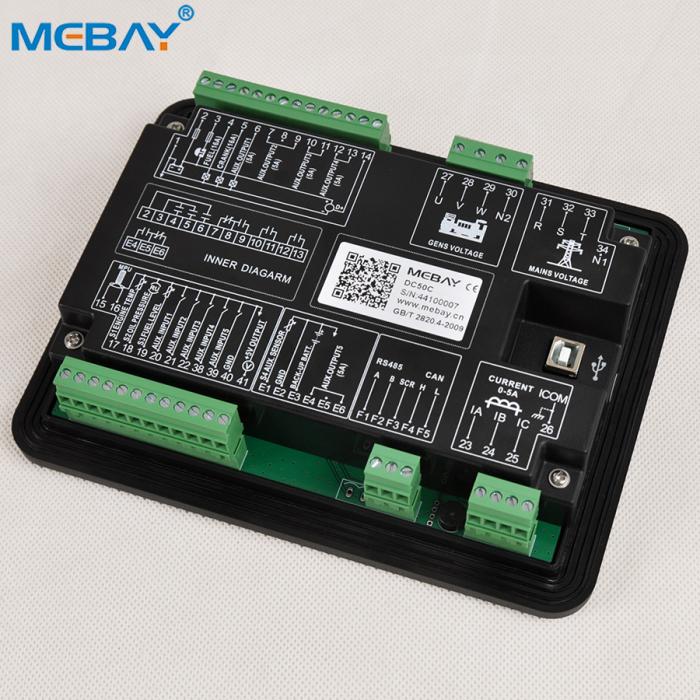

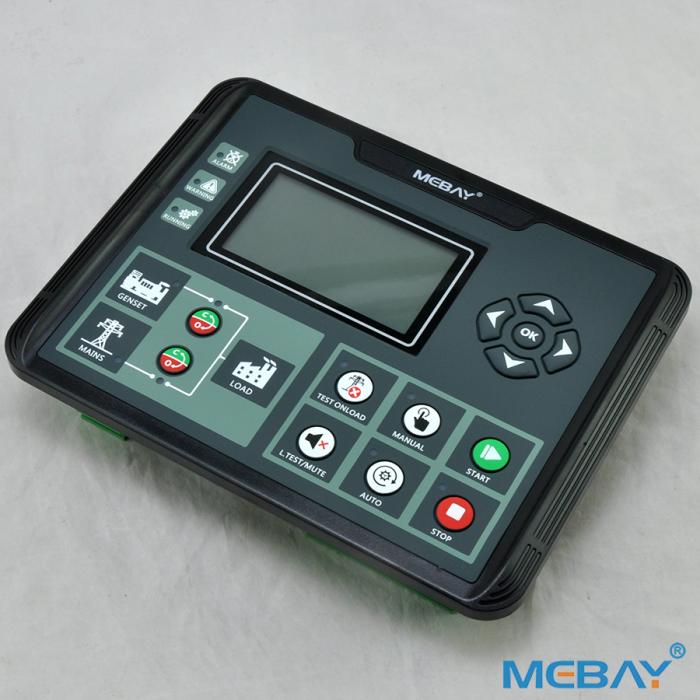

Operating voltage

DC 8V to 36V continuous power supply

Overall power consumption

Standby: 24V: MAX 1W

Operating voltage: 24V: MAX 5W

AC voltage input

One phase, two wires , 30VAC-276VAC (ph-N)

Two-phase three-wire 30VAC-276VAC (ph-N)

Three-phase four-wire 30VAC-276VAC (ph-N)

Engine speed signal range

50-10000Hz

Maximum cumulative running time

99999.9 hours (minimum storage time 6 minutes)

Fuel output

16Amp DC +VE power supply voltage output

Motor output

16Amp DC +VE power supply voltage output

Configurable output 1

5Amp DC +VE power supply voltage output

Configurable output 2

5Amp Passive Contact - One Normally Open - One Normally Closed Output

Configurable output 3

5Amp passive contact normally open output

Configurable output 4

5Amp passive contact normally open output

Excitation output

Maximum 1Amp DC +VE power supply voltage output

digital input

Connecting to the negative terminal of the battery is effective

Working conditions

-2 5 -65℃

Storage conditions

-40-85℃

Protection level

IP65: When a waterproof ring is installed between the controller and the control panel.

Insulation class

When an AC 2.2kV voltage is applied between the high-voltage and low-voltage terminals , the leakage current should not exceed 3mA within 1 minute .

External dimensions

210mm*160mm*50mm

Opening size

186mm*142mm

weight

0.85Kg
